Product description:

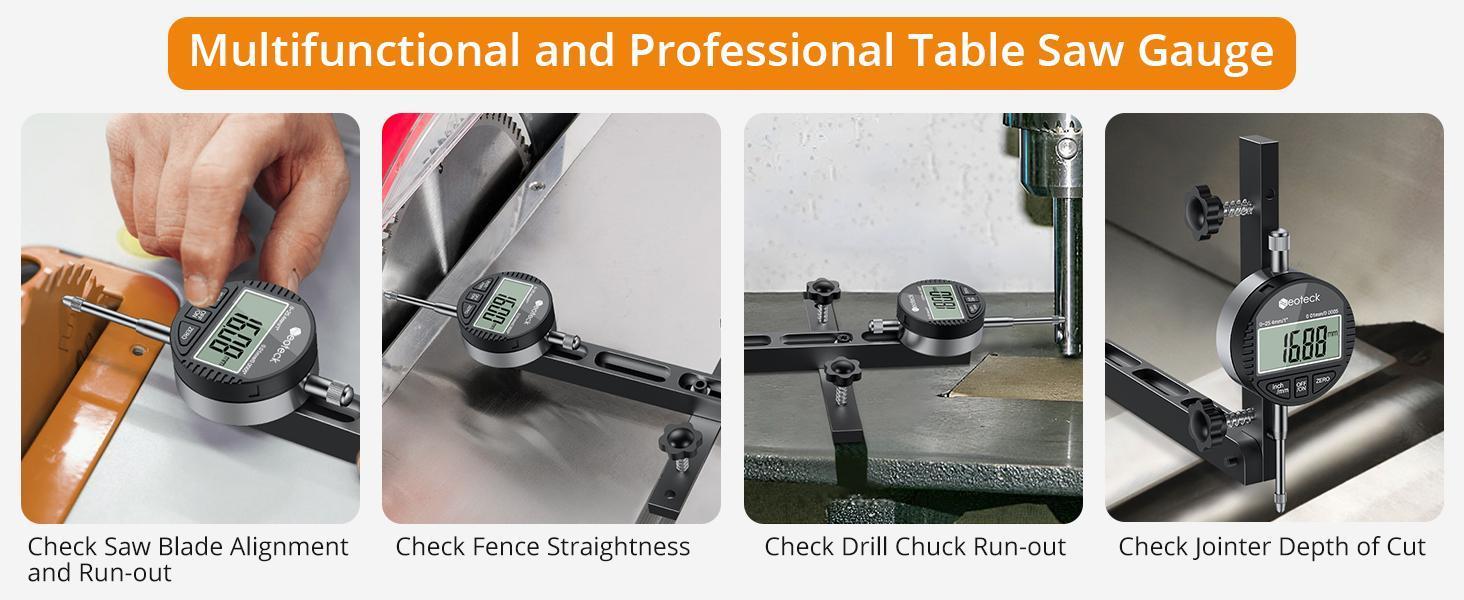

• Professional Table Saw GaugeNeoteck table saw gauge is designed according to the standard miter grooves(3/8 inch x 3/4 inch). It can check table saw miter slot to blade squareness, blade and fence alignment, arbor and blade run-out, or any other alignment and measurement you want, in order to make the table saw in its best condition, which is suitable for most table saws and can be widely used for aligning and calibrating work,shop machinery,band saws,drill presses.

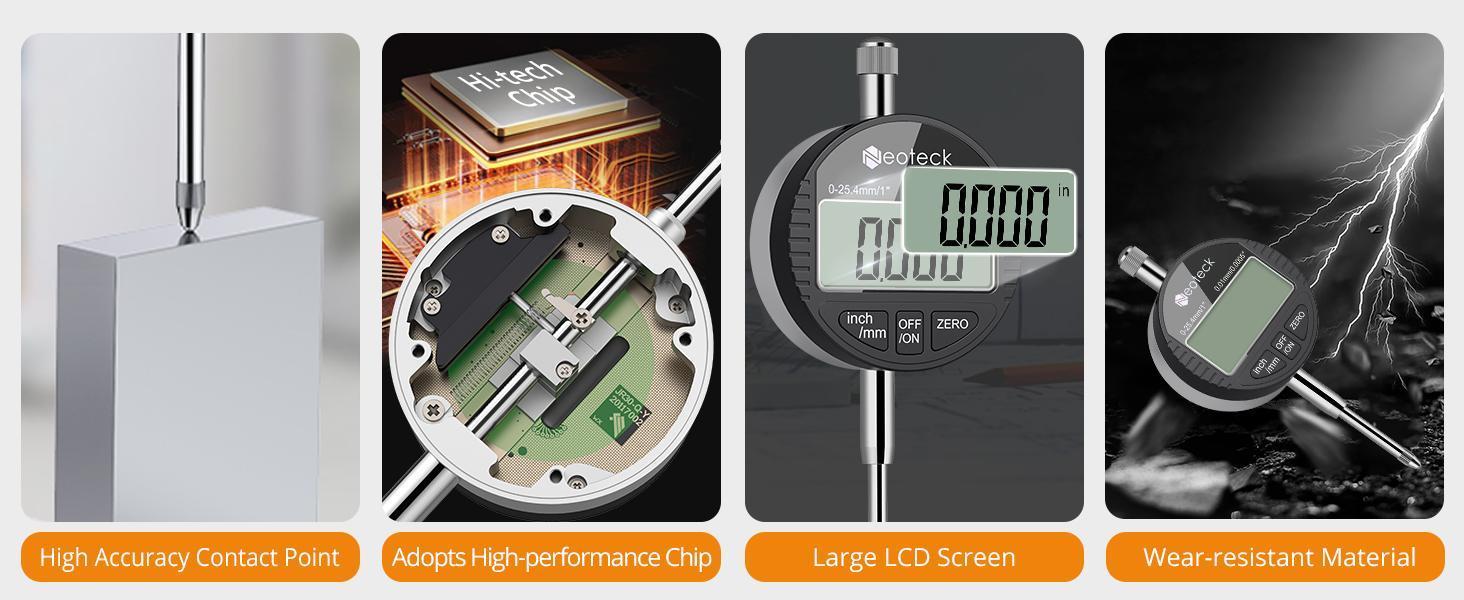

• Accurate Digital Dial IndicatorThe measuring range of the digital indicator is from 0 - 1 inch (0 ~ 25.4 mm) with high resolution up to 0.0005 inch (0.01 mm),also it is switchable between mm and inch with zero setting function. Compared with the dial gauge, Neoteck digital indicator can provide more convenient use experience and quickly help you finish the alignment work.
• CNC Anodized Aluminum Bars2PCS 3/4 inch adjustable, CNC-machined anodized aluminum bars with 3 chute partitions for enhanced stability and usability. The rod features 6 holes for a digital dial indicator, facilitating precise adjustments across various workshop machines, regardless of differences in chamfer groove and blade distances.(Note: Suitable for table saws with a groove width of 3/4" (19mm) or more; adjustable via screws for optimal fit if the groove width exceeds 3/4" (19mm))

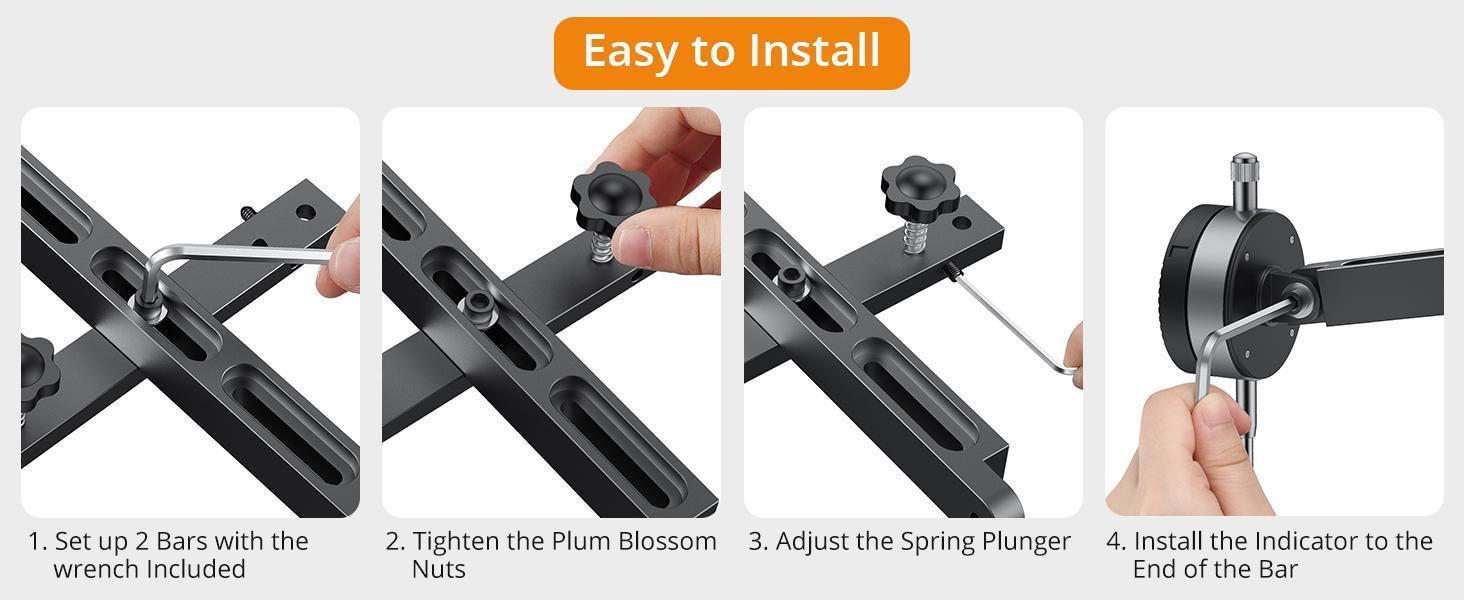

• Easy to InstallYou can quickly set-up, tune up and check the accuracy of your shop's tools. This system is the self-adjusting Smart Bar that will stay tight in a miter slot that isnt the same size along its slot length. You only need to adjust the spring plungers once, and after that, its a perfect fit in the miter slot, which is more efficient and convenient.
• Practical PackagePackage includes: 2 x anodized aluminum Bar, 1 x digital dial indicator, 1 x back cover, 2 x plum blossom nut, 2 x spring plunger, 2 x hexagon socket nut, 2 x hexagon socket wrench, 2 x metal shop. What's more,the practical storage case can well protect your table saw gauge set and it is more convenient for you to store the gauge and can be carried with you to everywhere.

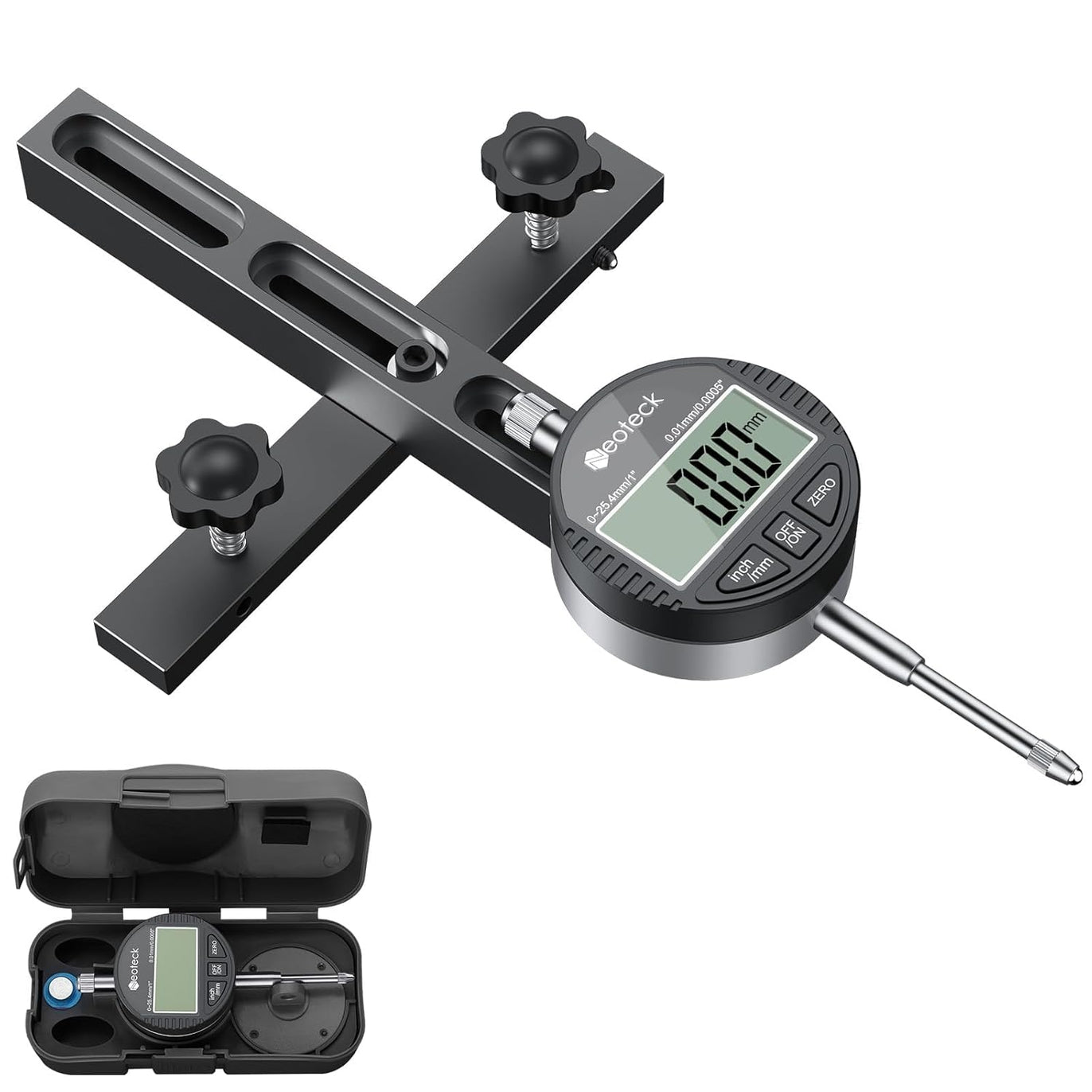

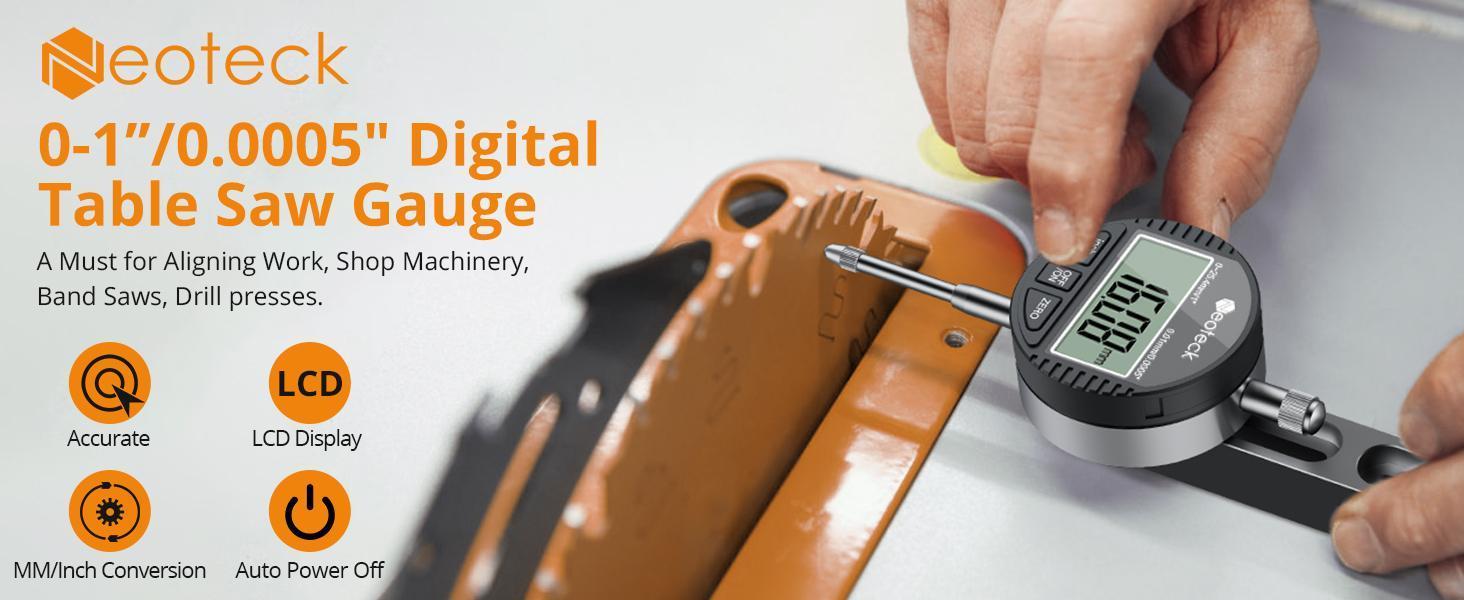

Neoteck 0-1'' Digital Table Saw Gauge Set for Aligning and Calibrating Work!

Table saw calibrator with 0.0005"(0.01 mm) high accuracy excels in ensure that the parts of table saw(such as blades, grooves, etc. ) are properly aligned to improve cutting accuracy and safety.

Sturdy Table Saw Blade Alignment Gauge _Ideal Tool for Saw and Fence Alignment

If you want to replace the back cover of digital indicator, you need to use a screwdriver(not included) to unscrew the top screws for replacement.

Suitable for Table Saws with a Groove Width of 3/4" (19mm) or More

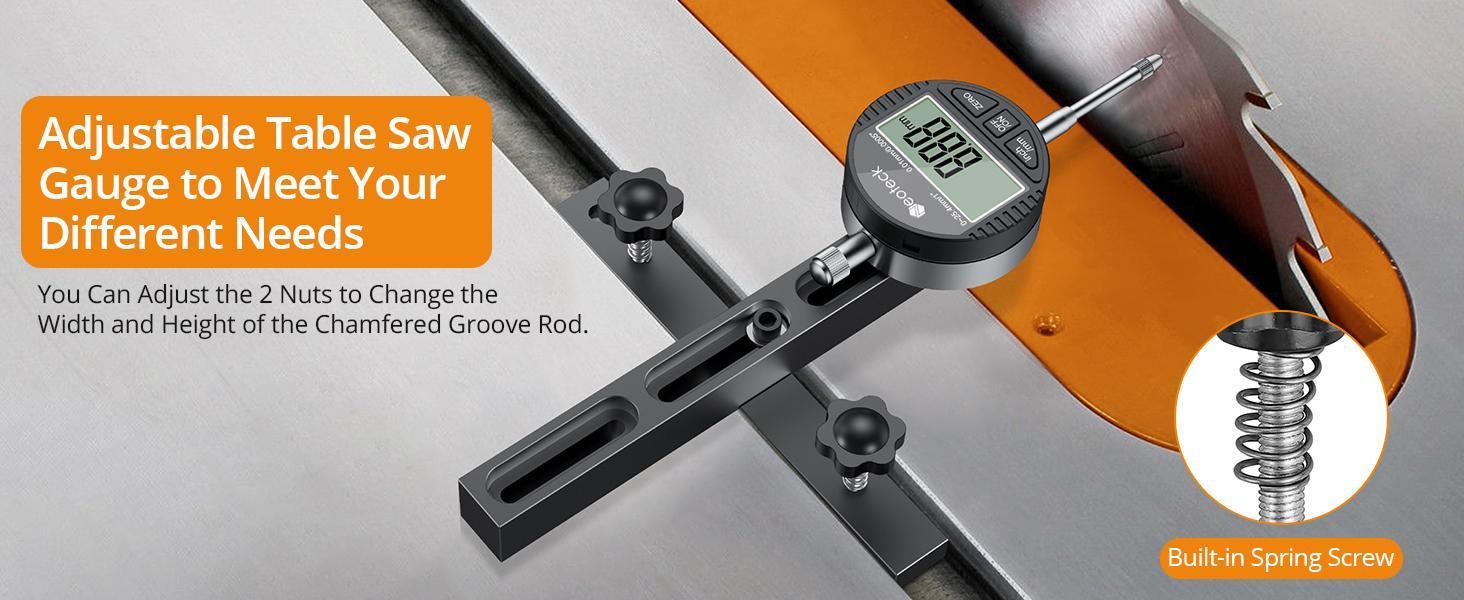

Note: aluminum alloy bar is suitable for table saws with a groove width of 3/4" (19mm) or more, if the groove width exceeds 3/4" (19mm), it can be adjusted using screws to achieve the most suitable groove width.

Easy to Operate, Facilitate Your Work!

Digital table saw gauge with 0.75 inch width anodized aluminum bar, checks table saw blade and fence alignment, arbor and blade run-out, miter slot to blade squareness, etc..

Please Refer to Product Video or Manual for Product Installation and Setting!
