If you feel tense every time when you astern, if you hate the inconvenience of getting rearview from rear mirror, then you will love this helpful car parking radar. The radar system, which has a detection range of 0.3 to 2.5m (rear) and 0.3 to 0.8m (front), turns on automatically when the car engine starts. 2.5-inch LCD display, digital and showing obstacle distance, which helps to park your car accurately. Besides, when the car gets closed to obstacles, beeping alarm prompts step by step,the closer distance is, more rapid the alarm sounds.
The front and rear probes can display at the same time when reversing
The radar system, turns on automaticallywhen the car engine starts.
4 front sensors and 4 rear sensors.

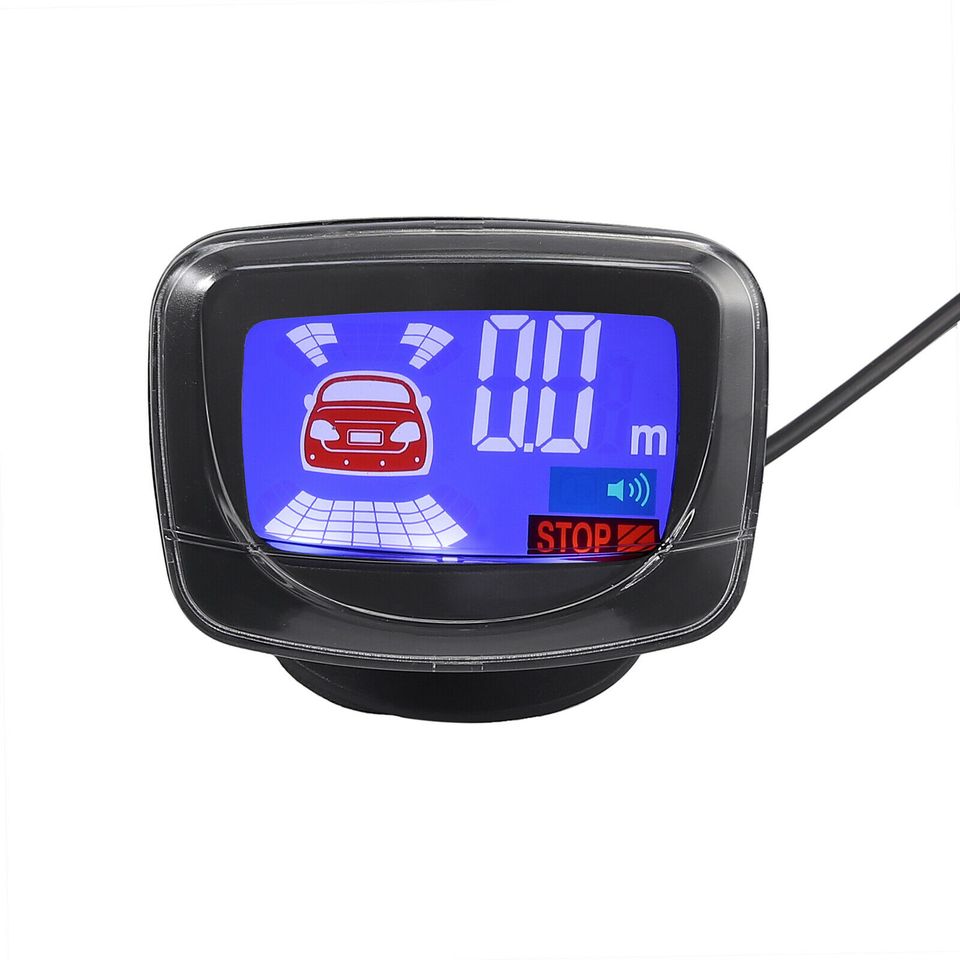

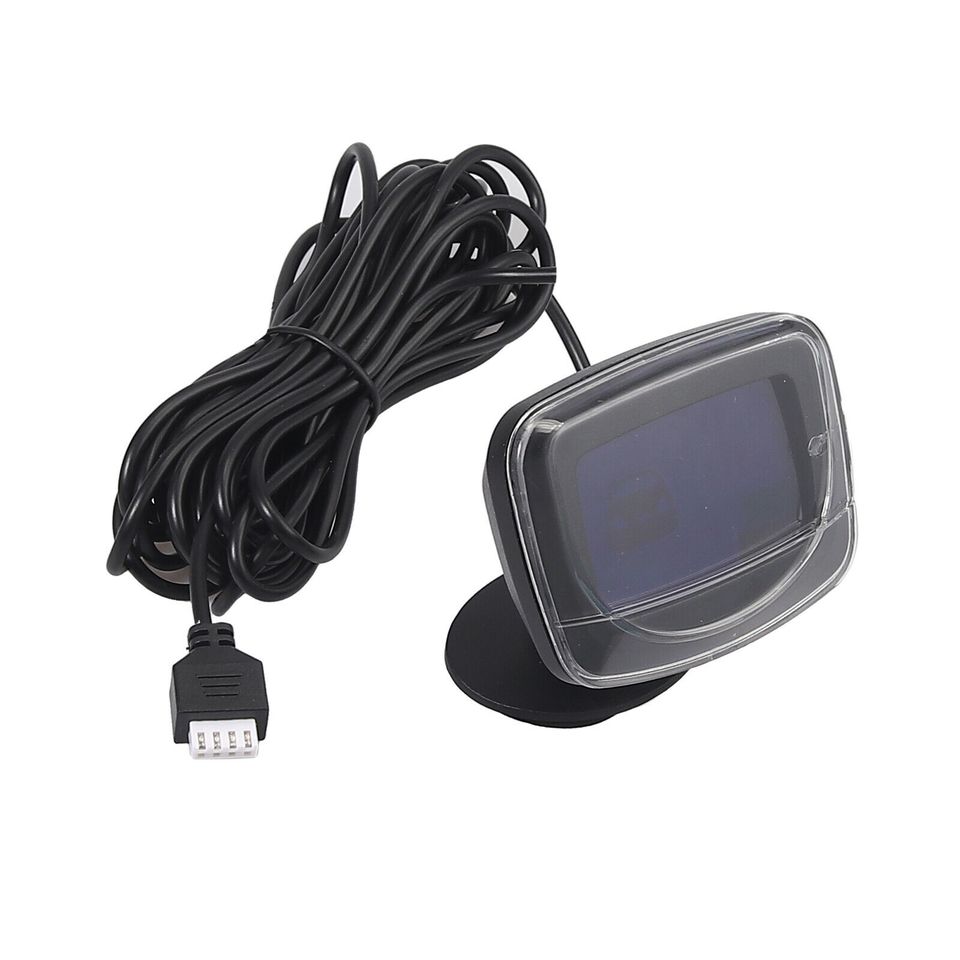

2.5-inch simulation screen, Obstacle specific position shows on the LCD display.
Double CPU for rapid response.
Beeping alarm prompt step by step, closer the obstacle , more rapid the alarm sound.
The probe self testing, abnormal state alarms in order to avoid collision caused bythe probe damage.
The red line connect ACC power is not for working.It is for braking delay.The working lines are the yellow line connect Reversing light power and blue line connect Braking light power, black line to Negative /iron.
Strong resistance toelectromagnetic interference, durable, and does not have any effect on the original electronic system.
Detectionrange of 0.3 to 2.5M (rear) and 0.3 to 0.8M (front).
Specific distance detected and showed 30 cmto 250 cm (cm level accuracy).
Display mode: LCD display
Type: Car parking sensor

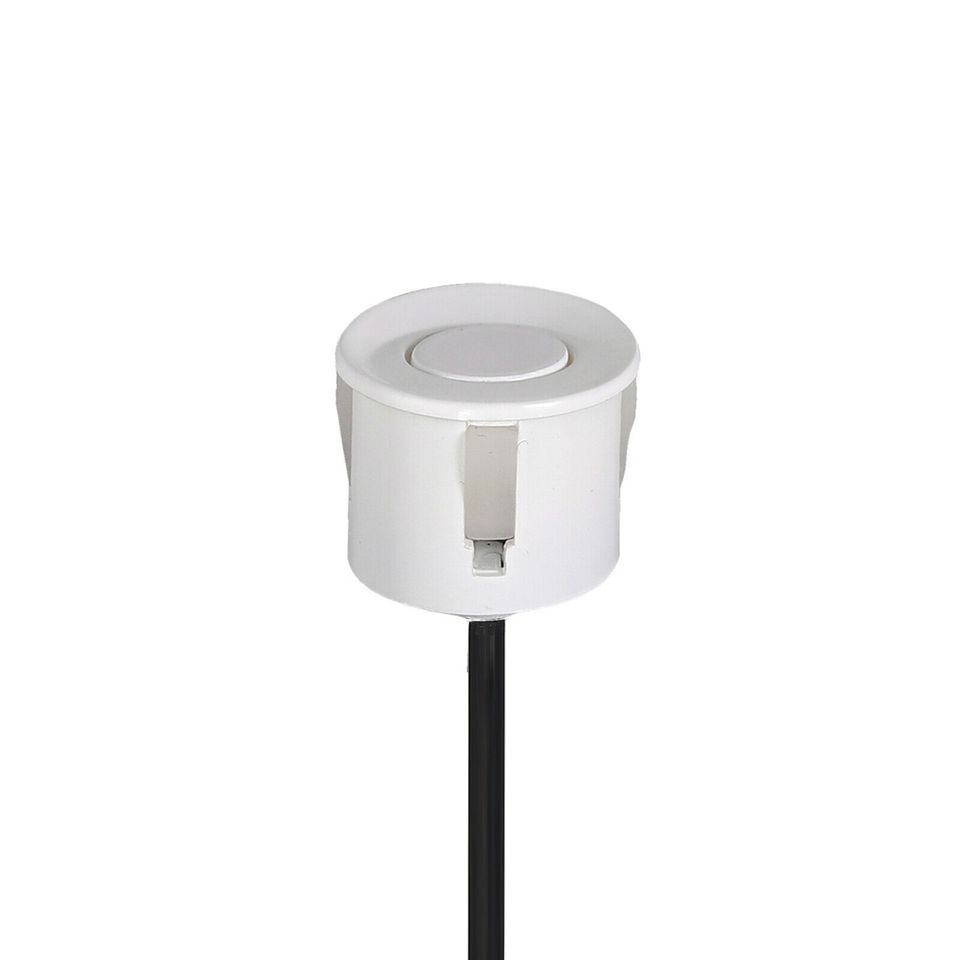

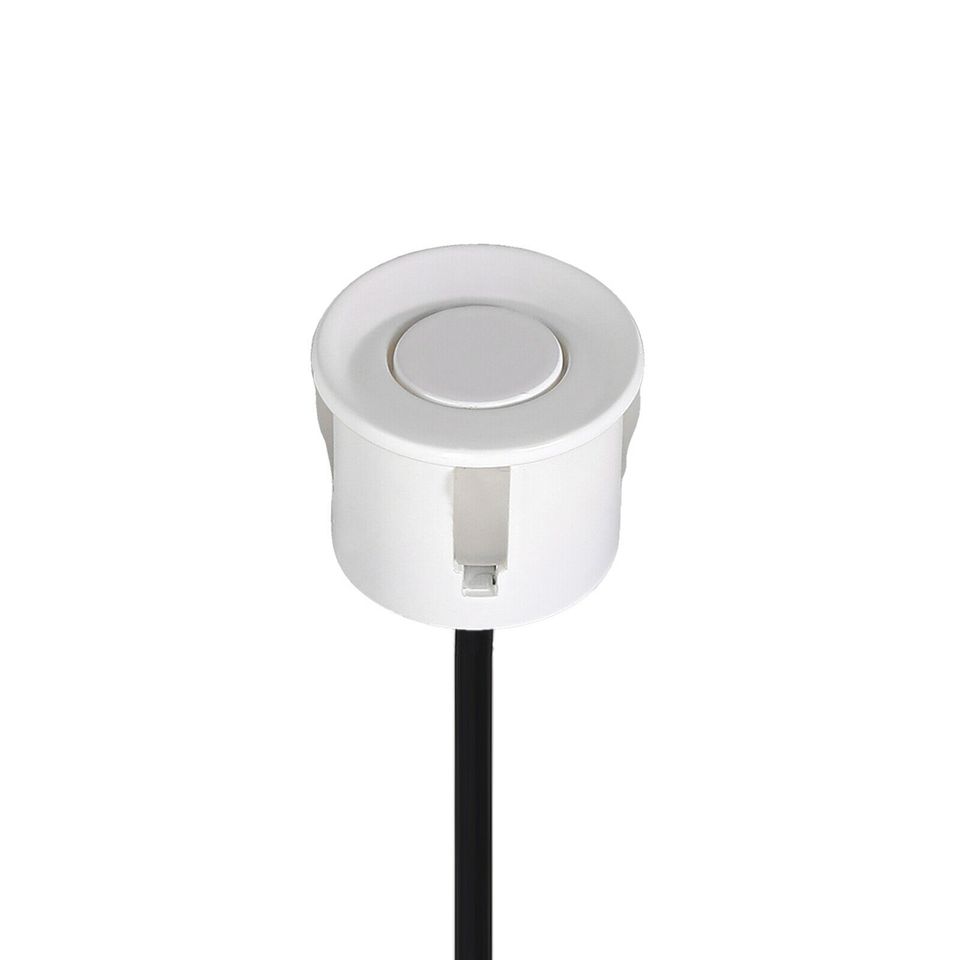

Sensor color: White

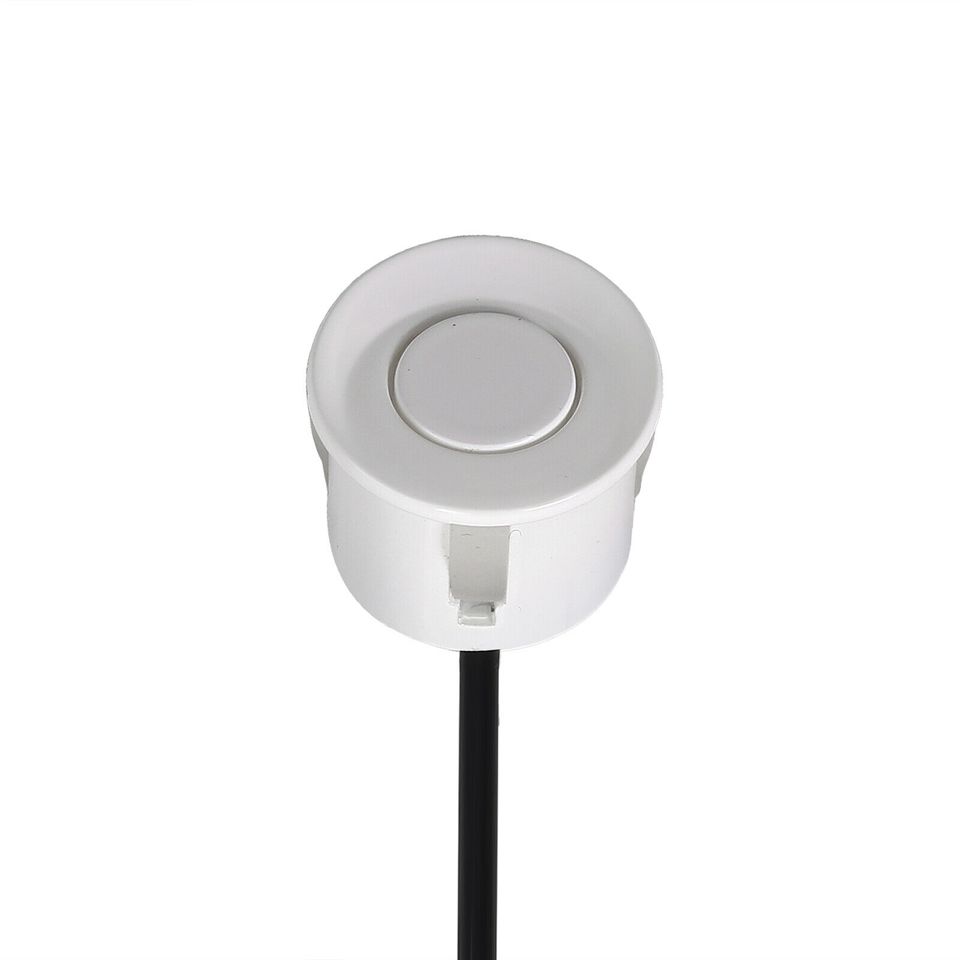

Sensor diameter: 22mm
Installation mode: Drilling
Detecting angle: H>60°, V>60°
Working voltage: 12 v DC (9.6 ~ 16 v DCvoltage).
Power consumption: 3.6W
Working current: 20 ~ 180 ma.
Alarm volume: 65 dB or higher.
Working temperature: - 30 ~ + 80 ℃.
Ultrasonic frequency: 40 KHZ plus orminus 1 KHZ
Power cable length: 0.8m
LCD display Cable length: 5m
Sensor Cable Length: 2.3m per sensor (rear) /6m per sensor (front)
RED Wire - ACC(+)
Blue Wire - Brake light(+)
Yellow Wire - Reverse light(+)
Black Wire - Negative(-) / GND(0v)
Please pay attention to the following issues during the installation process:
Wiring method：ABCD (rear sensor) EFGH (front sensor)

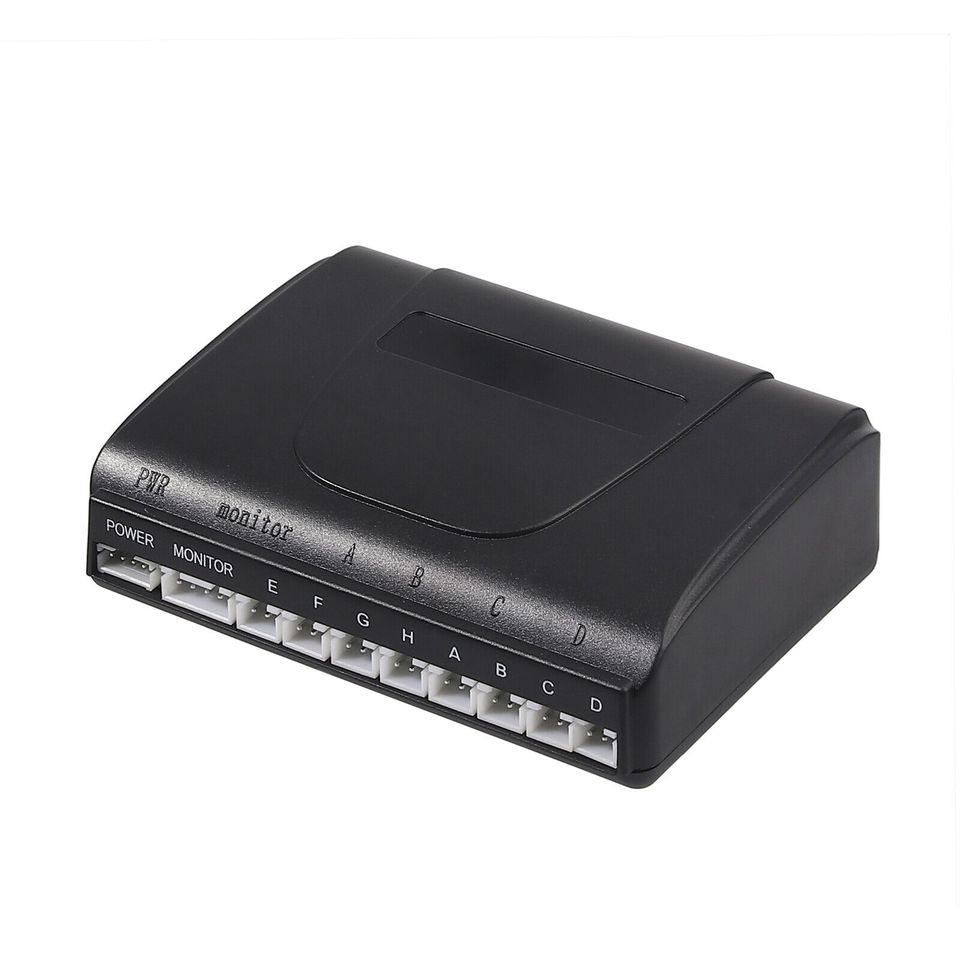

The radar host has eight interfaces ABCDEFGH.And the host must be installed at the rear of the car . When reversing，sensors ABCDEH working.FG does not work.When braking forward. EFGH working.
The monitor is not working when the vehicle is not in the state of braking and reversing

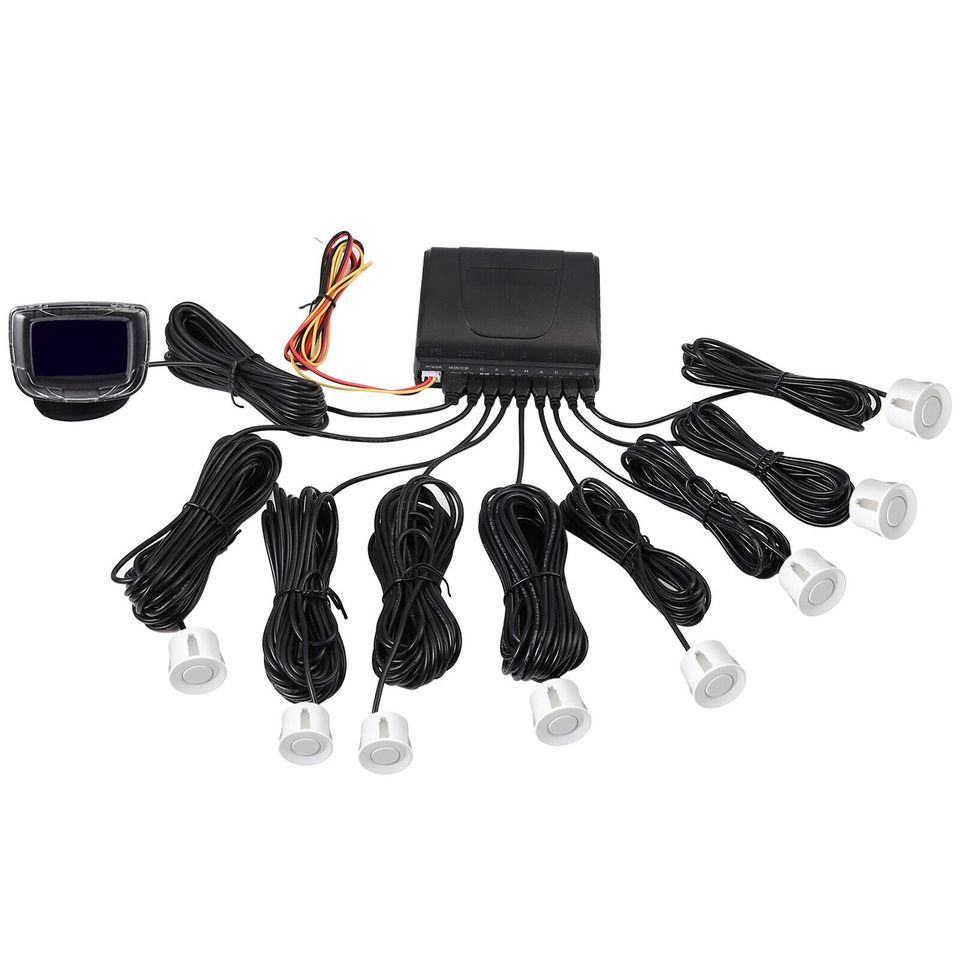

Package content :
1 x Control box

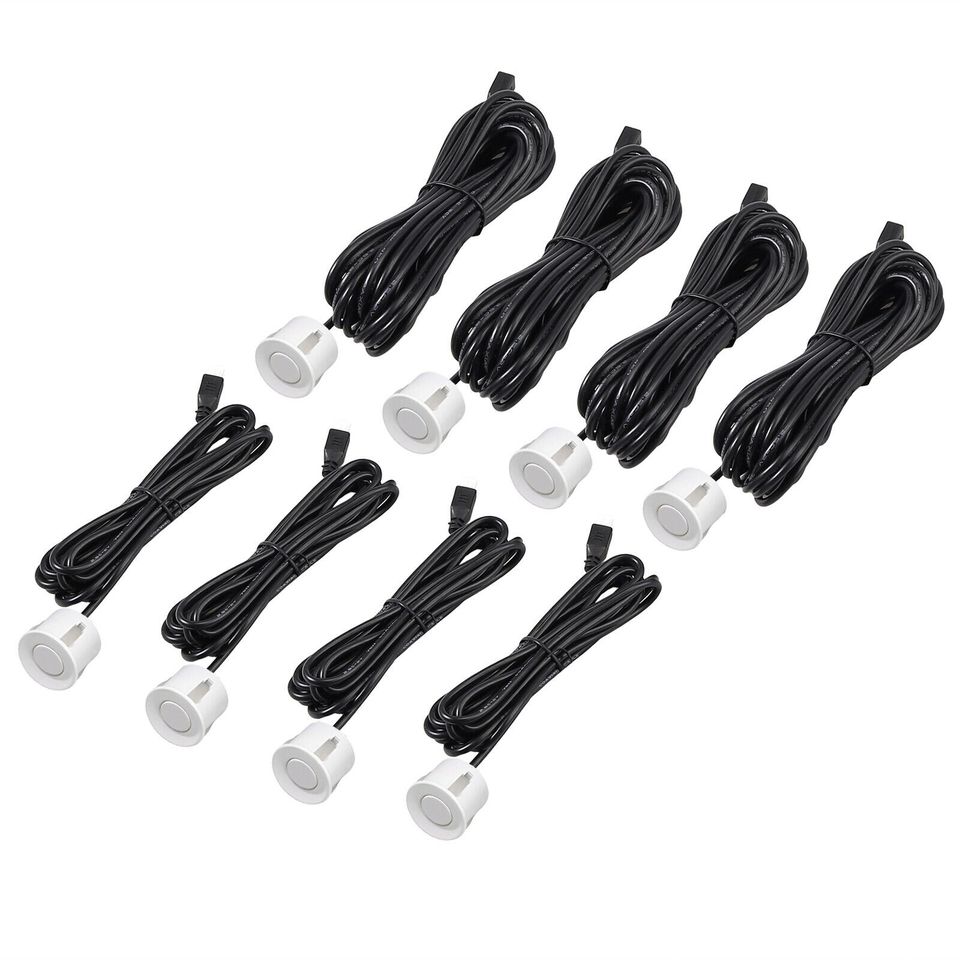

8 x Parking sensors (4 front and 4rear)

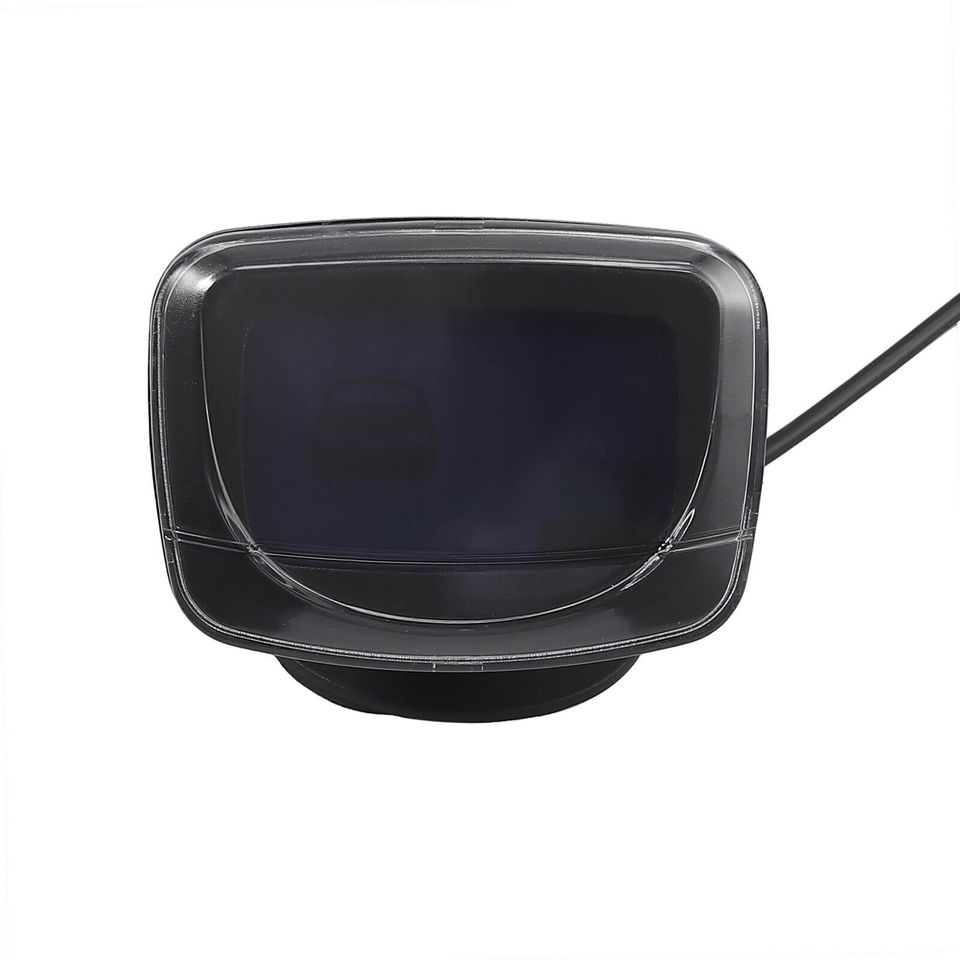

1 x LCD display

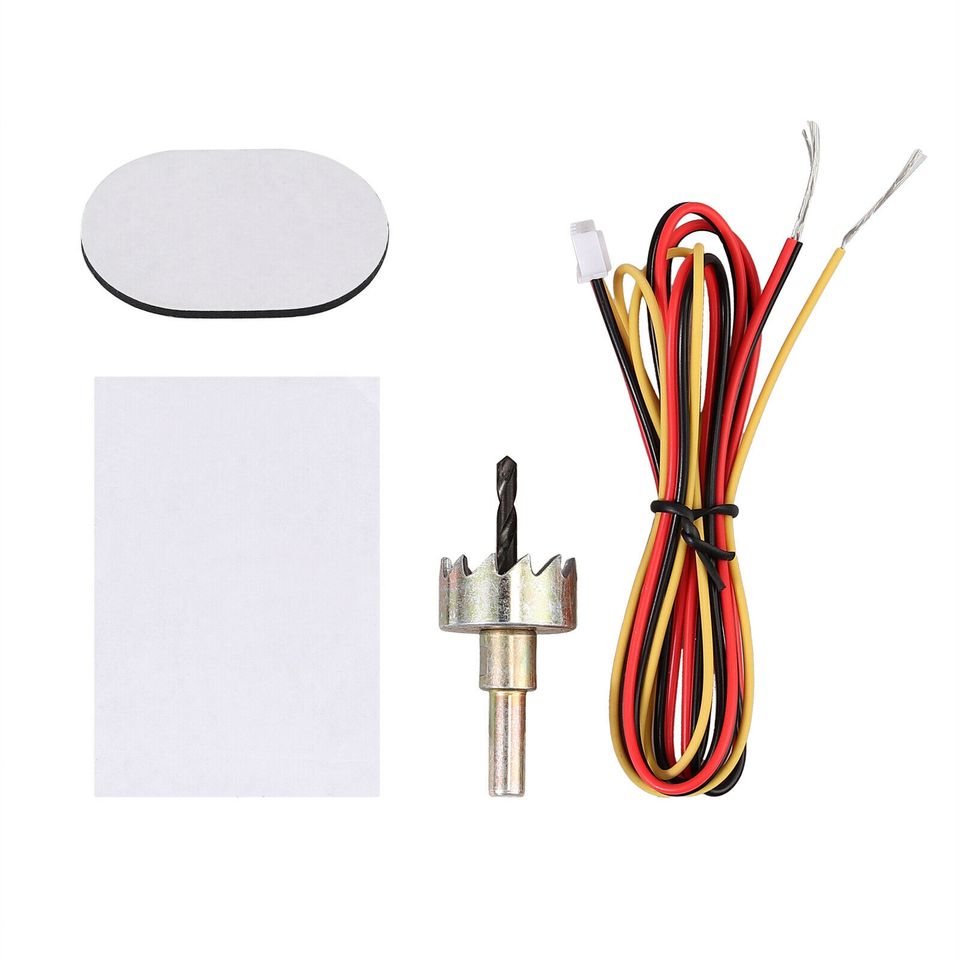

1 x Power cable
1 x 22mm drill
2 x Stickers
1 x User manual
