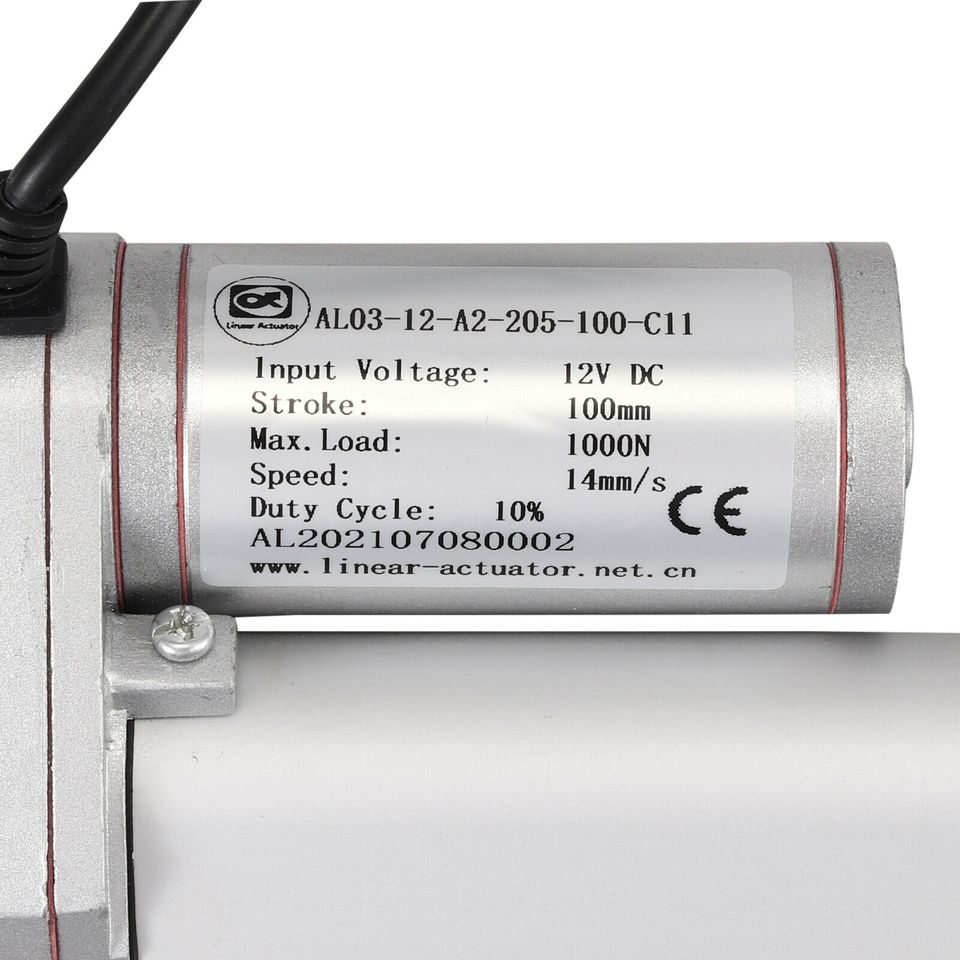

Technical Parameters:
Material: Aluminum alloy
Color: silver
Load capacity: 1000N
Input Voltage: 12V DC
Speed: 14mm/s

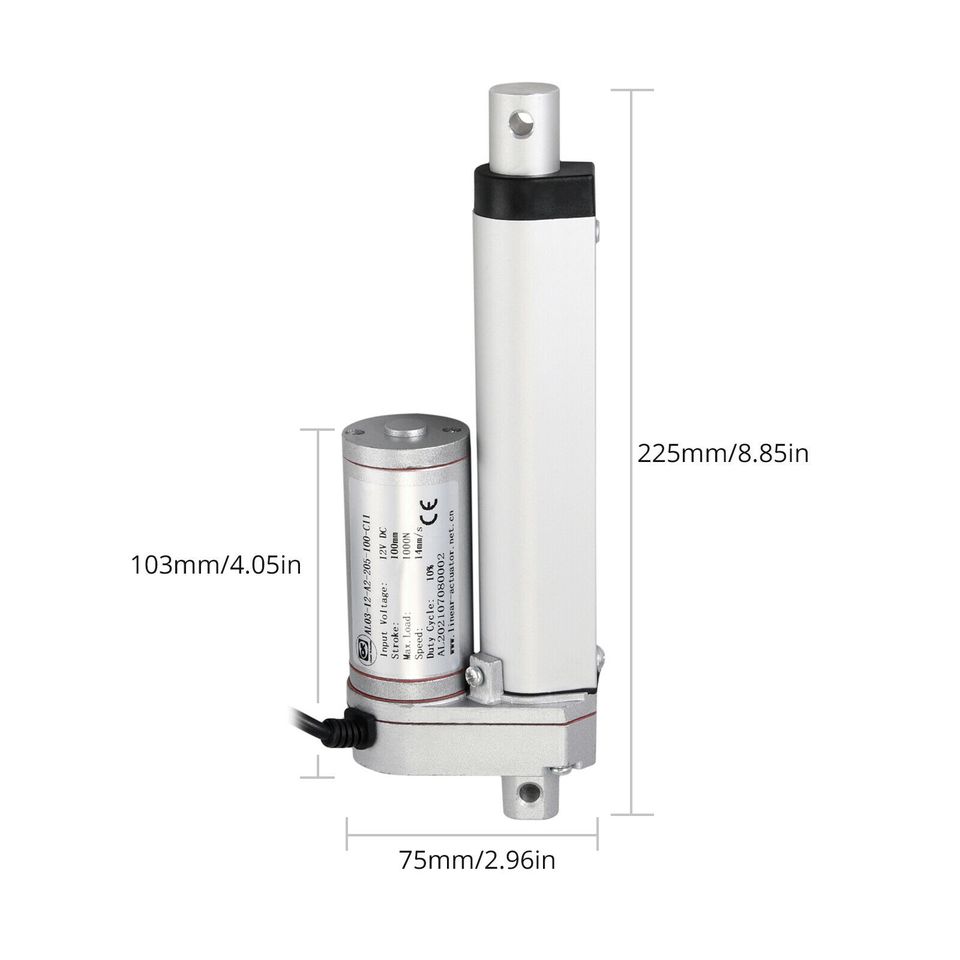

Stroke Length:100mm/4 inch
Working frequency: 10%
Rated power: 20W, maximum 30W.
Ambient temperature: -20°C to +75°C.
Standard protection class: IP54.
Features:
1. Push bar Each side contains a travel limit switch. When the telescopic bar runs to the top or to the bottom, it will automatically disconnect the electricity.
2. The motor will not idle. Cut off the power, it can stop at any position, with self-locking function.
3. The push rod is driven by a DC motor with a screw drive. The telescopic rod can only be retracted without rotation.

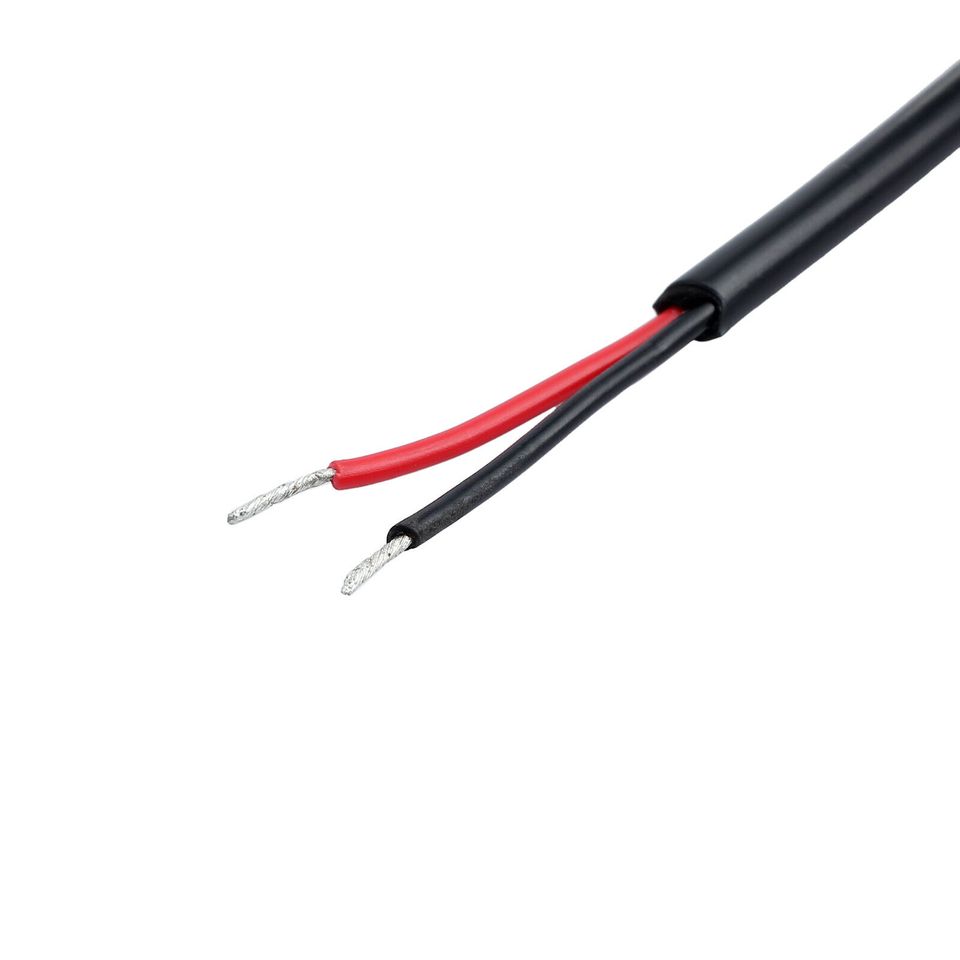

4. The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it.
5. Low noise design, noise level less than 42dB.
6. Please do not disassemble the machine.
7. Product function: drive other objects to push, pull, rise, drop.
Package Includes:

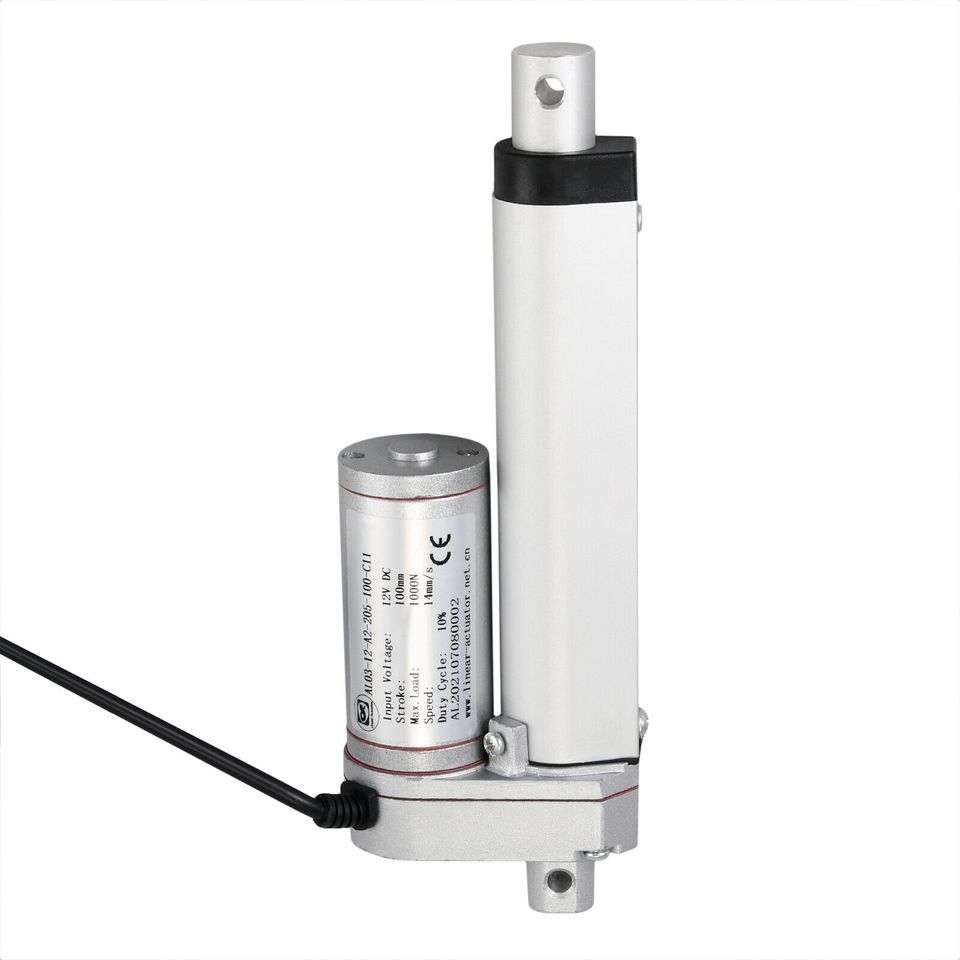

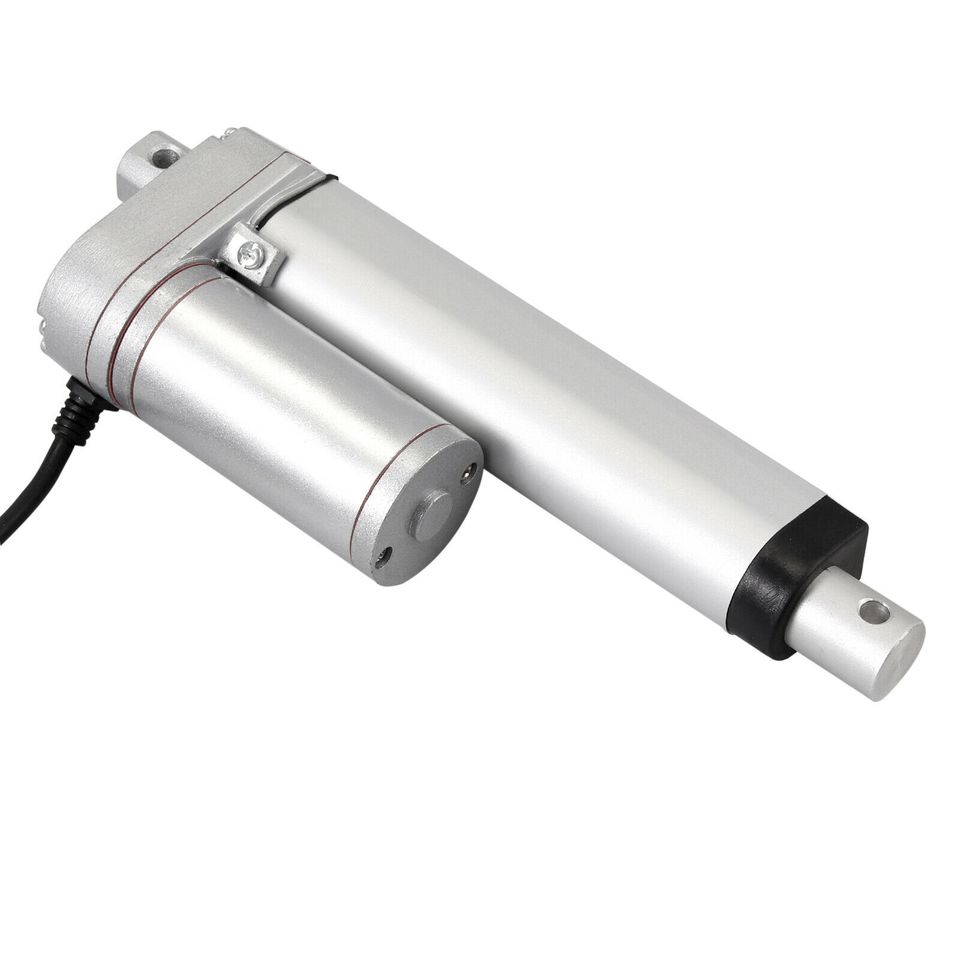

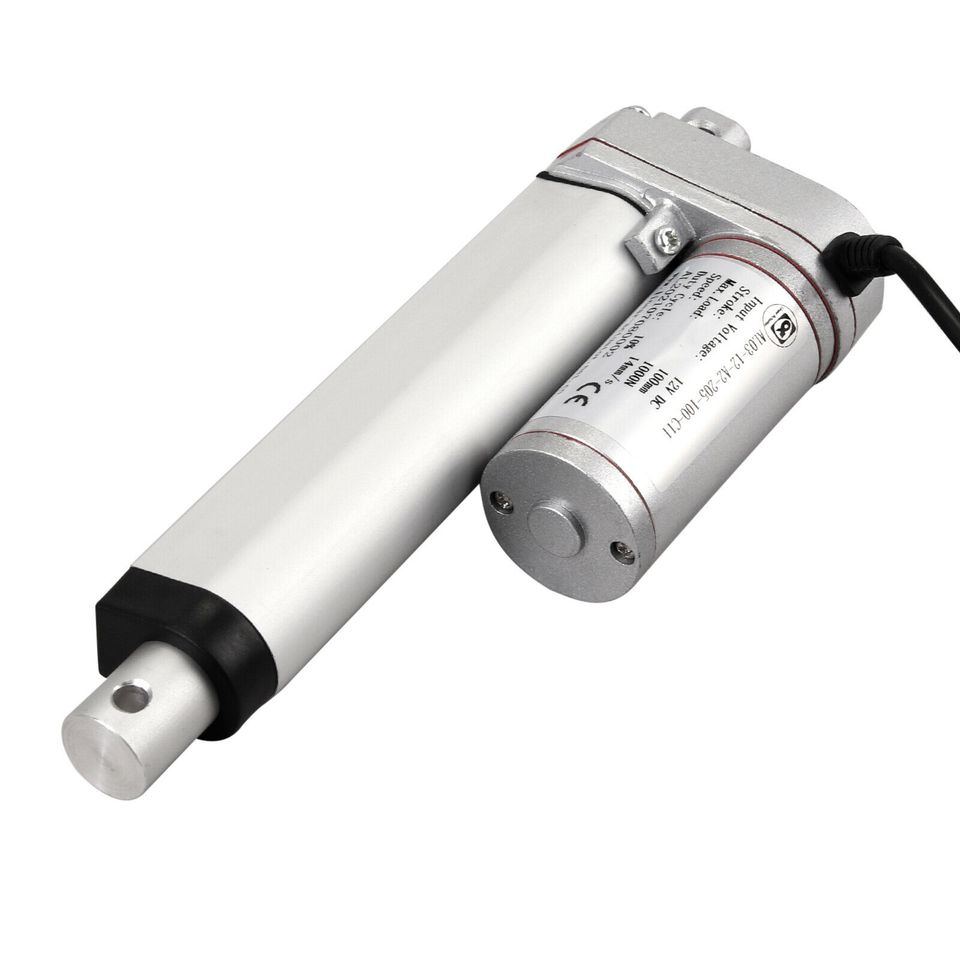

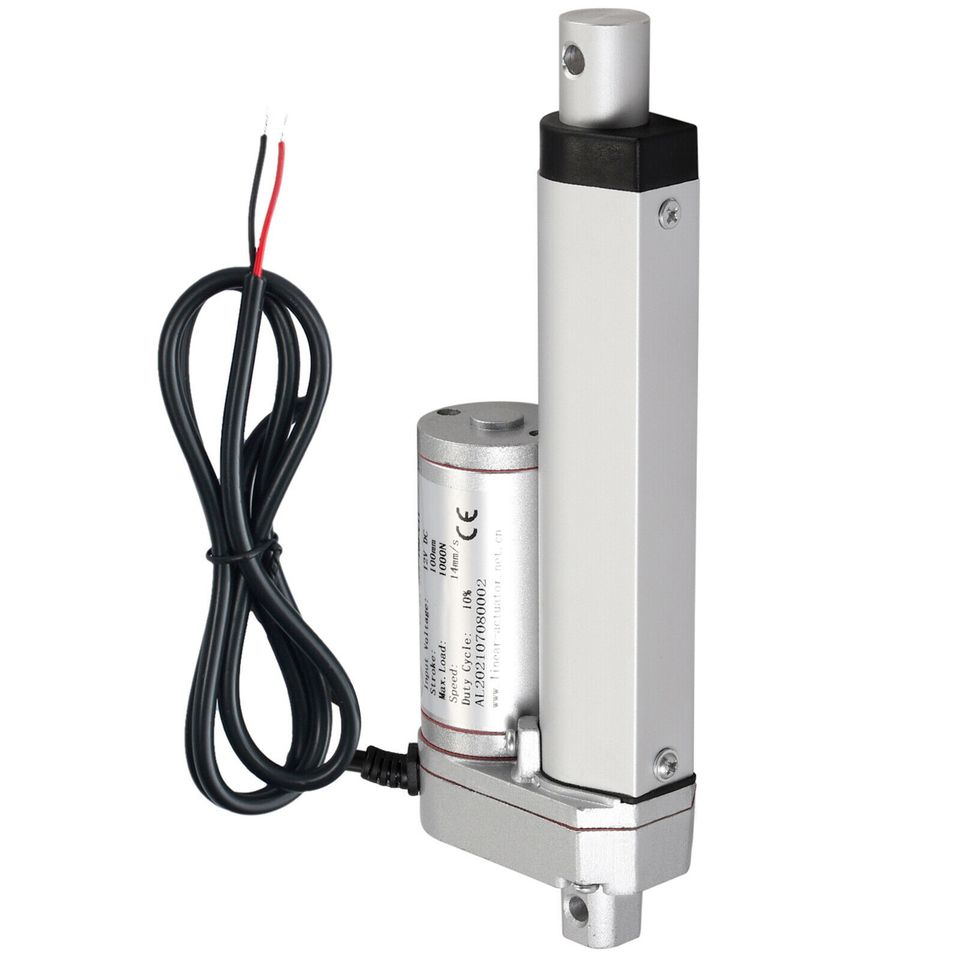

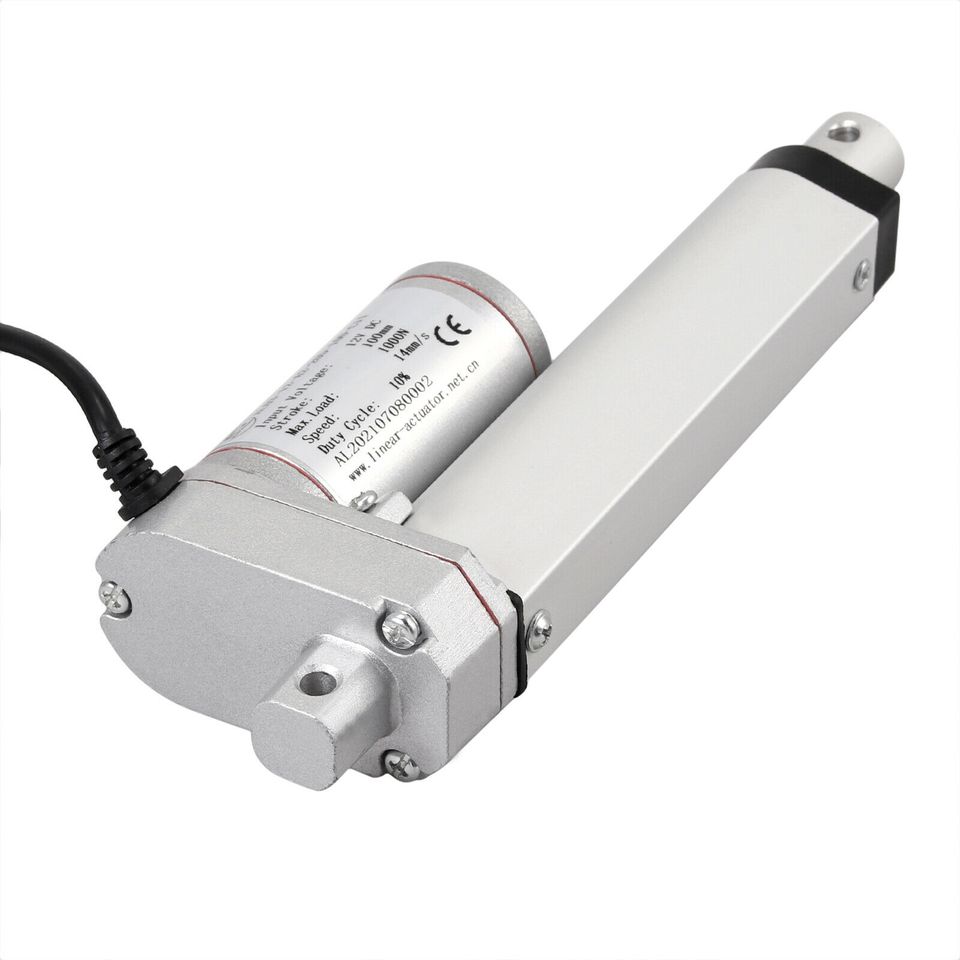

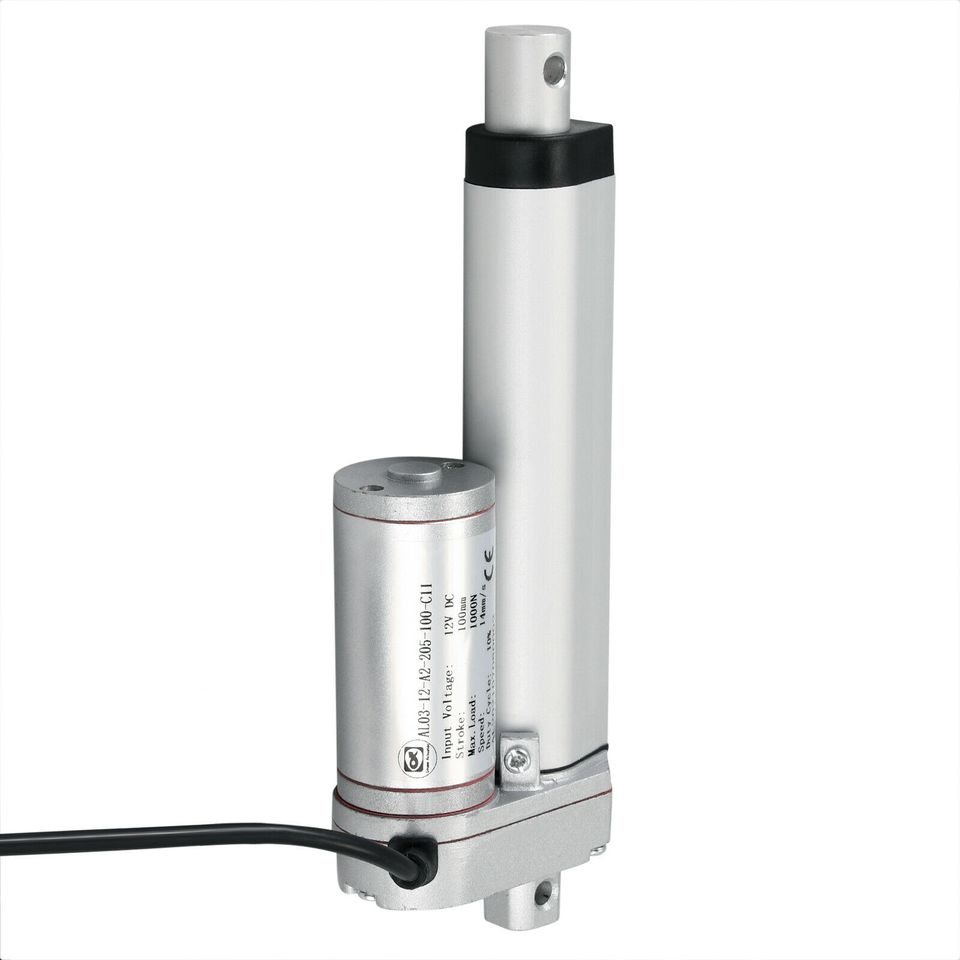

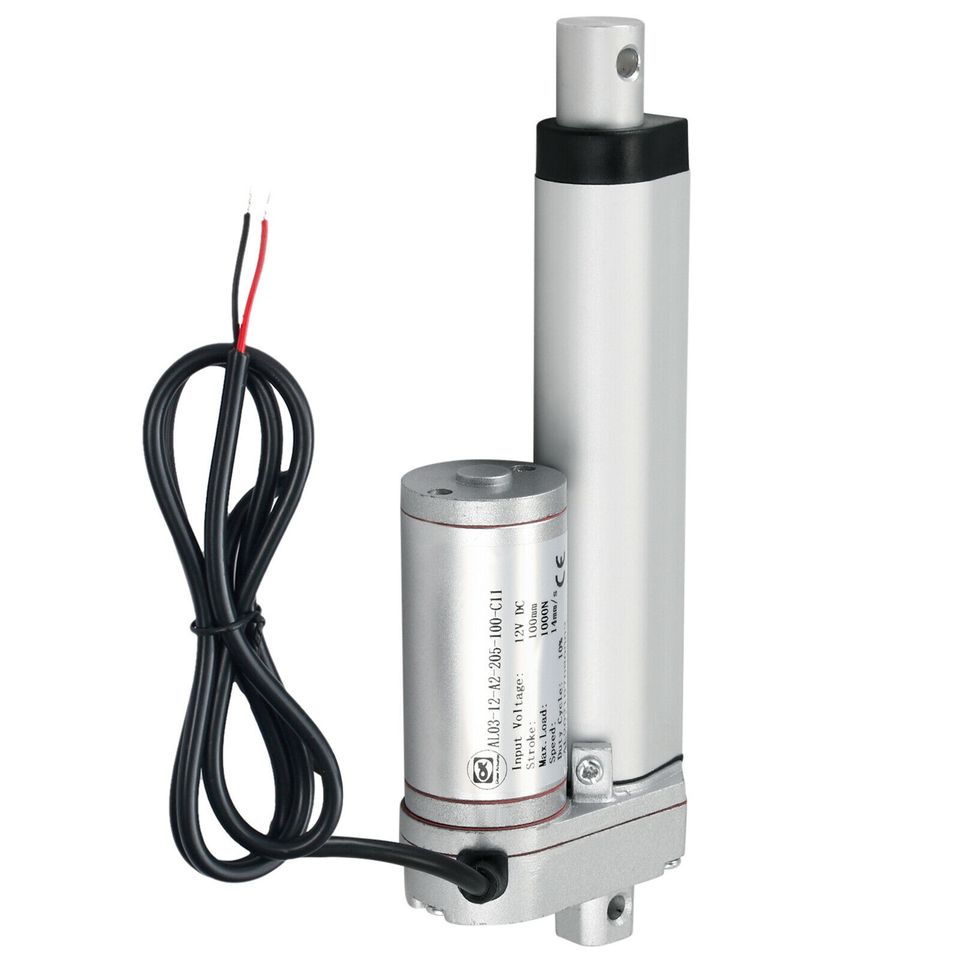

1×Linear Actuator Motor
